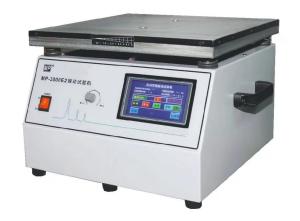

Variable Frequency Vertical Vibration Testing Machine MAX Load 30Kg

Variable Frequency Vertical Vibration Testing Machine
MAX Load 30Kg

Model: iMP-3000E2

Brief Introduction:

Iqualitrol variable frequency intelligent vibration testing machine is suitable for solder joint detection of electronic products and semi-finished PCB circuit board components, and an instrument for vibration resistance of the whole machine and various electrical products.

The vibration test method is based on the digital control of random vibration, it simulates and provides the vibration in various bad conditions to determine the ability of the test sample to bear the specified broadband random vibration.

It also simulates various severe vibration failure conditions and methods, and provides more information for the products to quantify the applicable test, Therefore, it has good reproducibility.

The device is superior to ordinary vibrator in appearance and function design, and the machine adopts advanced microcomputer control circuit, can permanently remember setting parameters, and power failure will not be lost.

At the same time, the number of vibration program segments and program cycles can be set, When the machine finishes vibration test stop or power off, the machine will automatically remember the current vibration data and reset automatically to prevent the machine from burning due to the impact voltage when the machine is started again.

At present, the common vibrator in the market has the above defects, so the failure rate is high, and the maintenance cost of the user is increased. The machine adopts intelligent digital control circuit to overcome and solve the above defects, Make the vibration testing machine work more stable and reliable

Technical Specifications:

1, working power supply voltage: AC220V
2, rated maximum power: 1.2kW

3, rated test load weight: 30kg
4, working table size L.W.H. (mm): 390 × 360 × 30

5, vibration frequency range: 2 ~ 400Hz (fixed frequency or sweep frequency can be set)
6, 20 different vibration parameters can be set, each test time can be set at will, up to 999 minutes

7, no load vibration amplitude: 0-3mmpp; (Note: vibration amplitude - changes with frequency and weight, no load amplitude cannot be greater than ± 1.5mm, maximum acceleration: 30g)

8, vibration direction: vertical / (y)
9, service environment: 0-40 ℃
